Note that this is a discontinued product. You may want to visit the brand's page here to browse their newer products.
What reviewers think
Bloggers and YouTubers have tried this product—so we've summarized their strongest opinions below. Links to full reviews follow.
What are hifi reviews useful for? (1) Identifying products you should demo in person at a dealer. (2) Learning which products reviewers unanimously praise as the best they've heard (this means they probably are legitimately great). (3) Identifying a product's attributes that satisfy your idiosyncratic needs and tastes. Beyond that, we often discount what reviewers say because they heap praise on most products—and are often apprehensive about publishing strong criticism or comparisons between products. Further, they seldom have more than a few products on-hand, often relying on their memories to compare past products. Always listen for yourself.
All
Altitude48ext
reviews
Video Review
Manufacturer details
Features
Specifications
- Digital Inputs (DB25): x1 (16 channels)
- Balanced Inputs (XLR): x8
- Balanced Outputs (XLR): x8
- Balanced Outputs (DB25): x4 (32 Channels)
- Input Impedance: 20k Ohms
- ADC Resolution / Sampling Rate: 24 bits / 48 kHz
- DAC Resolution / Sampling Rate: 24 bits / 48 kHz
- A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
- D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
- Reference Level: +18dBu @ 0dBFS (Balanced)
- Power Requirement: 240V AC / 50-60 Hz
- Power consumption: 90W
- Mains fuse: 1A slow blow
- Dimensions: 442 x 102 x 438 mm (17 1/2" x 4" x 17 1/4")
- Weight: 10.2kg (22.5lbs)
- Warranty: 5 year
Description

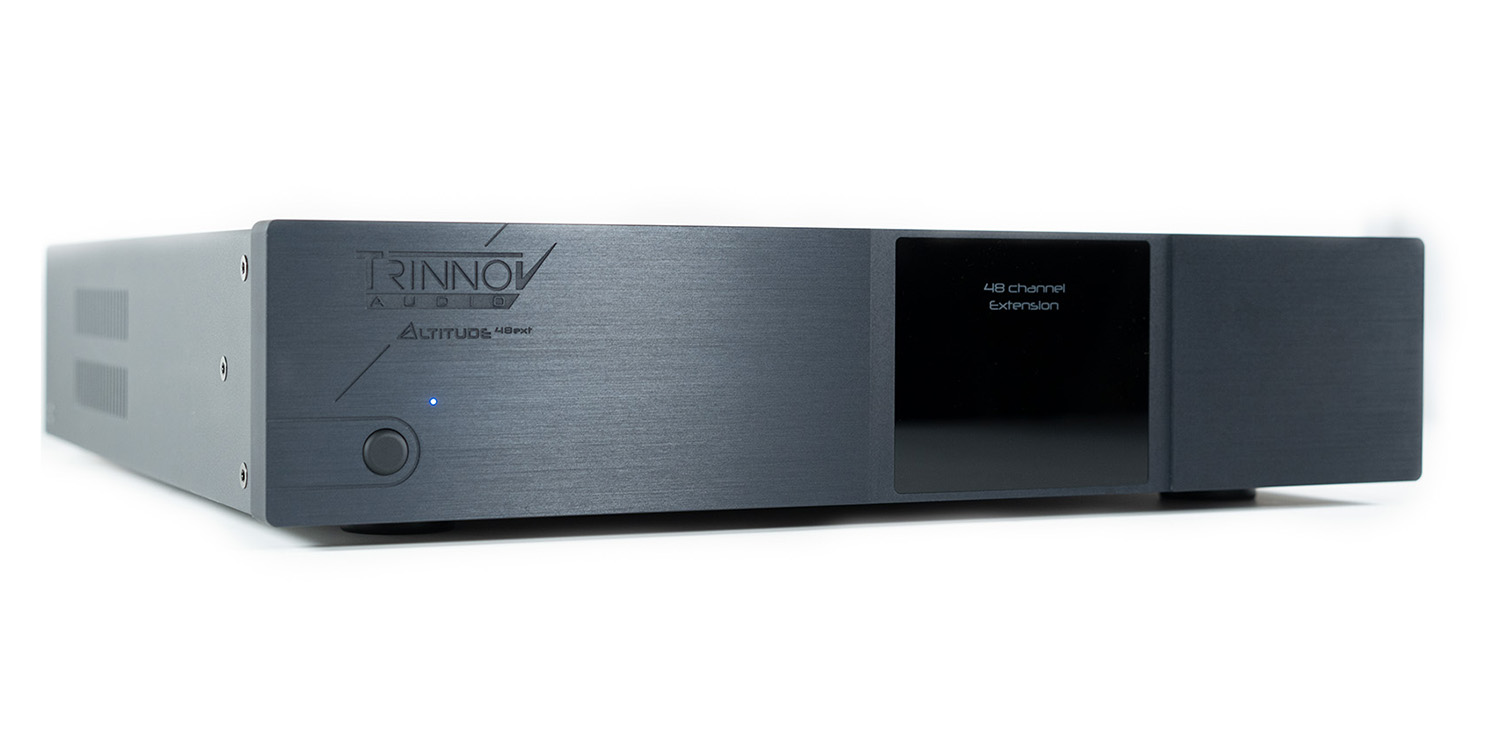

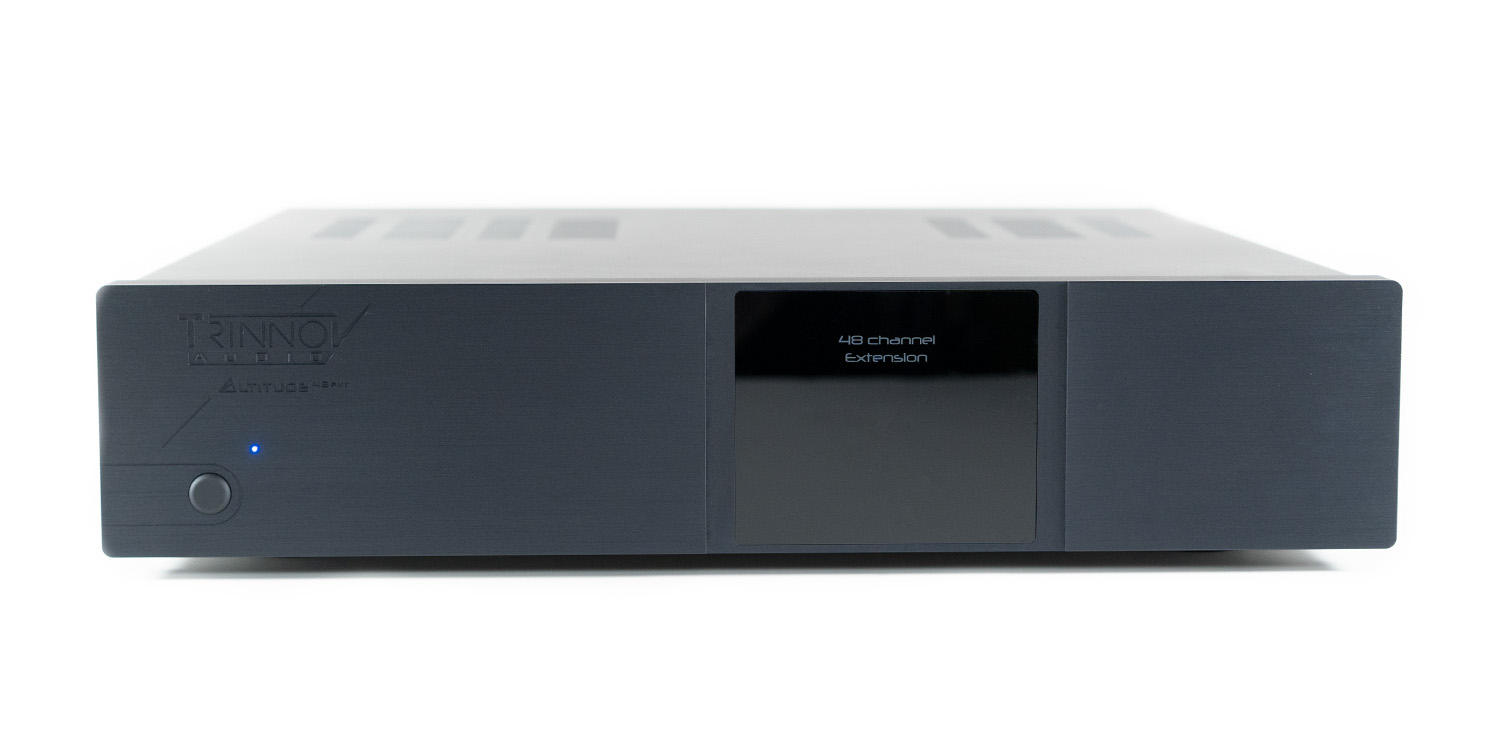

The Altitude 48ext was designed for the most exclusive private theaters with the extended capabilities of the Altitude32 in mind. If your home theater requires more than 32 channels, the Altitude 48ext is simply the only solution
Designed for the Most Exclusive Home Theaters This unique solution makes it possible to enjoy a true cinematic experience where professional and consumer Dolby Atmos soundtracks can be played optimally across the same high-channel count speaker system, calibrated with Trinnov’s exclusive Optimizer technology. The Perfect Combo Building on the unique decoding and rendering capabilities of the Altitude32, the Altitude48ext pushes the limit further with up to 48 individual decoded outputs and a total of 64 processing outputs. The Altitude32 can be unlocked to deliver up to 48 individual outputs. This is made possible by enabling its 32 analog and 16 digital outputs simultaneously.
Release Timeline
Manufacturer Site
Brand highlights
Taking a step back to look at reviewers' thoughts of the brand's entire lineup—not just this product—what stands out most is the following:
- Trinnov's core technology, the Optimizer, utilizes a sophisticated 3D microphone system to perform detailed time- and frequency-domain measurements of the listening environment, enabling precise room correction and speaker optimization.
- The brand's products stand out for their ability to remap speaker locations virtually, correcting for less-than-ideal placements and creating a more accurate and immersive soundstage.
- Unlike many processors relying on fixed DSP chips, Trinnov utilizes a software-based architecture on an Intel platform, offering flexibility through software updates and support for the latest audio formats and features.
- They offer extensive customization options, including fully assignable channels, comprehensive bass management, and target curve adjustments, allowing users to fine-tune the audio to their specific tastes and room characteristics.
Select products
Select product comparisons
Amplitude8
- Positioning: A high-performance 8-channel power amplifier for home theaters.
- Description: Uses Hypex Ncore NC1200 class-D power modules, providing excellent clarity and resolution. Delivers 225W into 8 ohms, 375W into 4 ohms, and 500W into 2 ohms, making it more powerful per channel than the Amplitude8M.
Amplitude16
- Positioning: A versatile 16-channel power amplifier for immersive home cinemas.
- Description: Features dual power supplies and ICEpower class D modules, delivering up to 400W per channel at 4 ohms. Offers more channels and power flexibility than the Amplitude8 and Amplitude8M.
Altitude16
- Positioning: A mid-range immersive sound processor for home cinemas.
- Description: Supports up to 20 discrete channels with Dolby Atmos, Auro-3D, and DTS:X Pro, offering high-resolution audio processing. Provides a more accessible option compared to the Altitude32, with fewer channels while maintaining high sound quality.
Altitude32
- Positioning: A high-end reference immersive audio processor for home theaters.
- Description: Supports up to 34 discrete channels and offers exceptional configurability and sound quality. Surpasses the Altitude16 with higher channel counts and processing power.
Altitude48EXT
- Positioning: A premium extension for the most exclusive home theaters.
- Description: Extends the capabilities of the Altitude32, supporting up to 48 individual outputs. Designed for the most demanding setups, offering more channels and processing power than any other product in the lineup.
See All Products
Avg. Product Price
$20,001-$30,000
Used For Sale
8
Available (Scroll Down)
Brand Popularity
245
of 900+
Badges
Top 50 Brand
Top 250 Brand
Products Listed
7
Founding Year
2003
Our take on the brand
Trinnov Audio is a hifi brand that pioneered immersive audio research and developed a unique 3D calibration microphone with four elements that measures speaker locations in three dimensions. Their flagship Altitude32 processor supports up to 32 discrete Atmos channels and includes the Dolby Atmos Object Viewer, which shows a real-time visual representation of sound objects in the listener's room.
