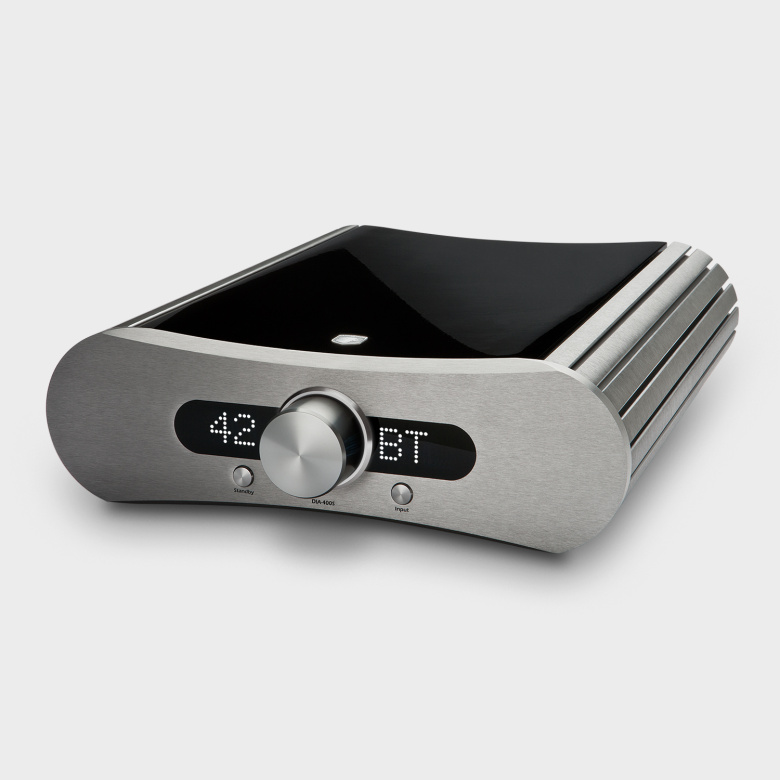

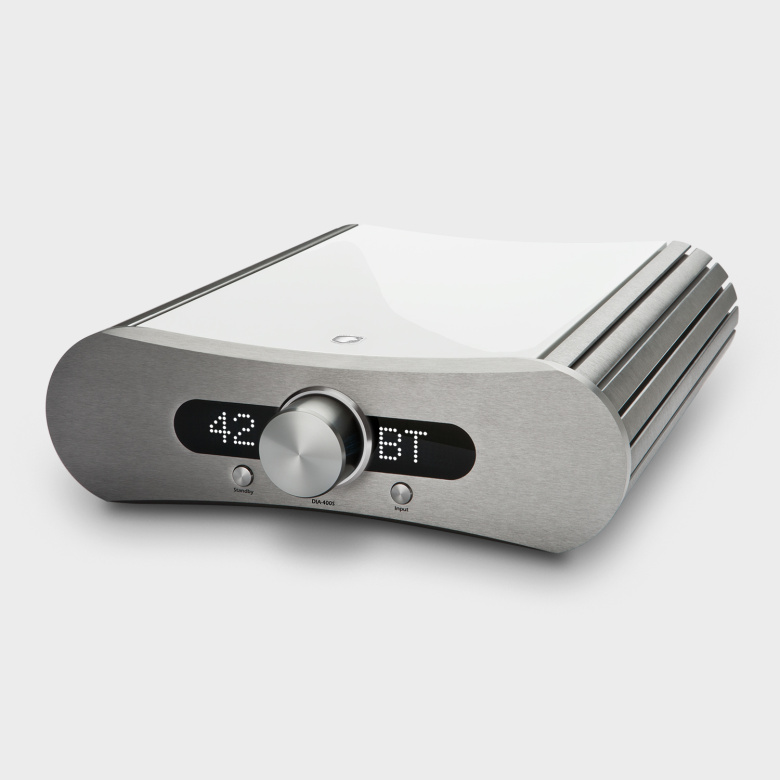

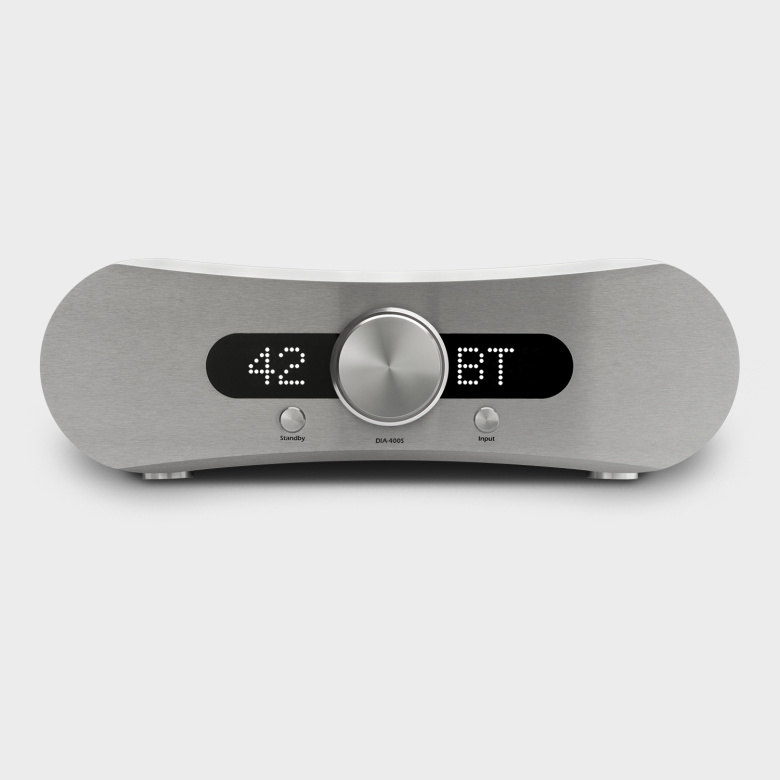

DIA-400S

Class: D

Brand details gato-audio.com

Specifications

Output power: 2x 400 W / 8 Ω - 2x 800 W / 4 Ω
Frequency response: 20 Hz-20 kHz - 0.5 dB, and 2 Hz-70 kHz - 3 dB
Total Harmonic Distortion: < 0,01% at rated power
Signal to noise ratio: > 110 dB
Line out maximum level: 13V balanced, 6,5V unbalanced
Input impedance: 20 kΩ RCA or 40 kΩ Balanced
Line output impedance: 75 Ω
Voltage gain: 26 dB (+10 db headroom)
Recommended speaker load: 4 -16 Ω
Power Requirements: 115 VAC/230 VAC, 50 Hz/60 Hz, 1600W max
Power consumption stdb/idle/max: < 1W/35W/1600W
Dimensions (WxHxD): 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5"
Weight: 13 kg / 28.7 lb

Description

The Gato Audio DIA-400S is all about merging the best sound quality with the best and most versatile features. The all new Gato Audio DIA-400S has been thoroughly updated compared to the standard DIA-400. We wanted to get the performance even closer to that of our AMP-150 integrated amplifier but keeping all the versatile features and even adding a high quality aptX Bluetooth receiver.

The reference in Class-D amplification just got even better! The Gato Audio DIA-400S is all about merging the best sound quality with the best and most versatile features.

S is for "Super"

The all new Gato Audio DIA-400S has been thoroughly updated compared to the standard DIA-400. We wanted to get the performance even closer to that of our AMP-150 integrated amplifier but keeping all the versatile features and even adding a high quality aptX Bluetooth receiver. The DIA-400S has not only become one of the best sounding Class-D amplifiers but also the most flexible available.

We changed and improved the electrical circuits and layouts in more than twenty ways, the most significant being:

Optimized mains filter

Improved general and local power supplies

New input stage

Improved output stage

New analogue stages in the D/A converter

Improved digital signal routing

Updated firmware

Improved connectors

Incorporated aptX Bluetooth module

Even though the DIA-400S is a rather expensive amplifier, it dares to be compared directly to exotic Class-D amplifiers at twice or four times the price. It features the best Class-D amplification technology available and combined with our delicate analogue circuits - the result is absolutely world class sonic performance. The DIA-400S is recognizable by its clock like ring around the solid volume knob.

Our reference in Class-D amplifica...

Release Timeline

Brand highlights

Taking a step back to look at reviewers' thoughts of the brand's entire lineup—not just this product—what stands out most is the following:

Gato Audio products exhibit a distinct design aesthetic, characterized by elegant curves, brushed aluminum, and the option for high-gloss black, white, or walnut top covers.
The brand incorporates high-quality DACs, often Burr-Brown PCM1794A chips, with upsampling of digital signals to 24-bit/192kHz for enhanced sound reproduction.
They integrate a custom-designed network player module (NPM) that offers extensive streaming capabilities and Roon endpoint functionality, transforming their amplifiers into versatile all-in-one solutions.
Gato amplifiers aim to emulate the sonic characteristics of Class AB amplifiers while utilizing the efficient, cool-running Class D topology, often employing International Rectifier circuits in their designs.
